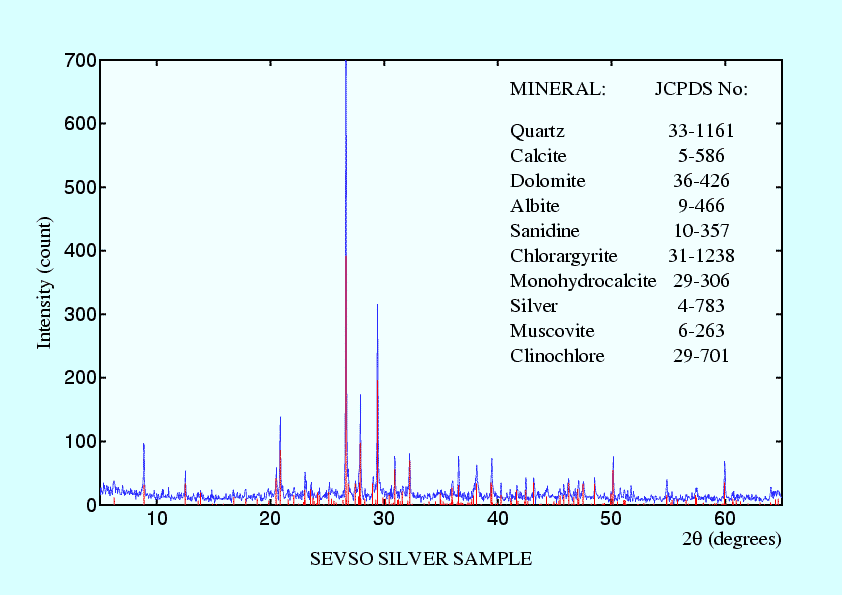

The blue line represents the raw diffraction trace "as collected" and the red lines are the 10 matched JCPDS standards overlaid and scaled to the raw data. Even then, only quartz and calcite are present in significant proportions, the other eight are minor components.
